40層3*6尺全自動熱壓機投入使用（廣西?。?/strong>發(fā)布日期：2020-11-16 16:46:01 瀏覽次數(shù)：0

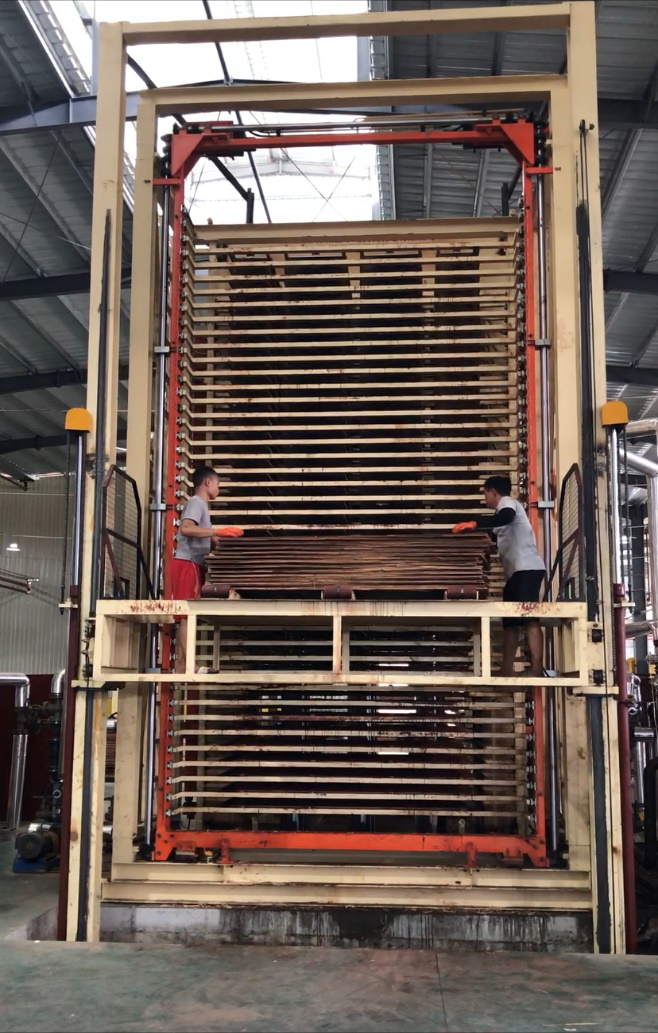

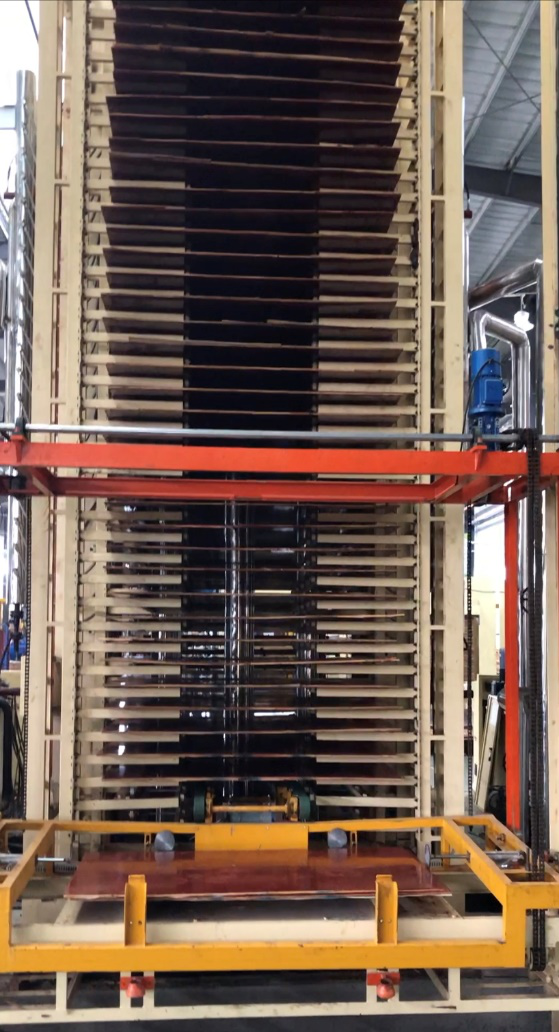

40層3*6尺全自動熱壓機投入使用（廣西省）
Items model | XHC600-36-40-80-42-320-3 | |
Nominal | 6000KN | |
Rated pressure | 25Mpa | |
Hot press plate size | 1050X2100X42MM | Q235 |
Disdance of hot platens | 80MM | |
number of hot press plate | 41 | |
Layers | 40 | |
Closing time | ≦20S | |
Overall dimension | 3555*1350*9554mm | |
Weight | 85000kg | |
Heating material | Water,steam or oil | |
Upper and bottom beam | 800 AND 900mm | |
Oil cylinder quantity | 320*3pcs | |
PLC | ||
Contactor | ||
Closing time | 10S |
